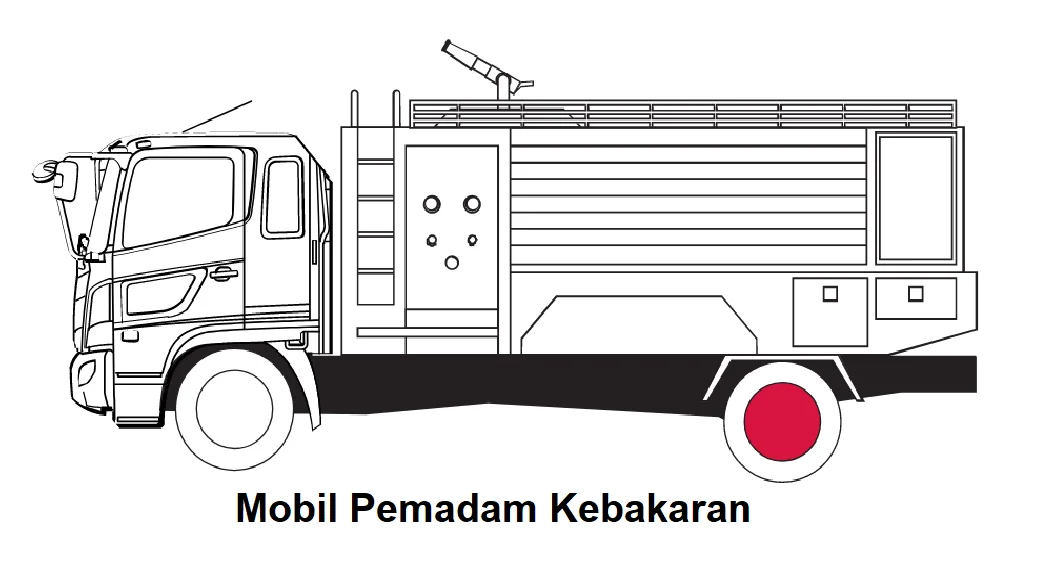

Mobil Pemadam Kebakaran

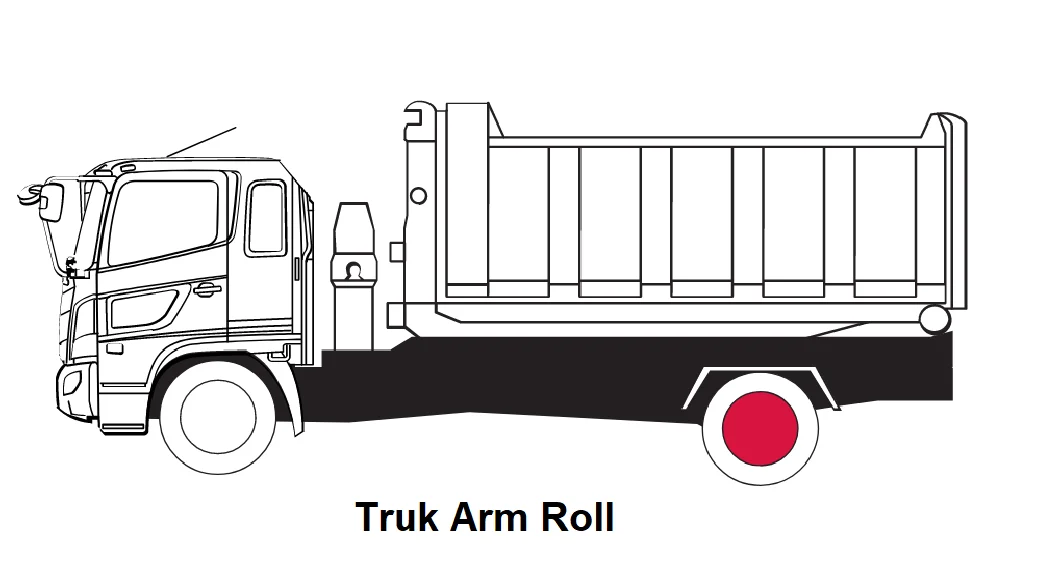

Truk Arm Roll

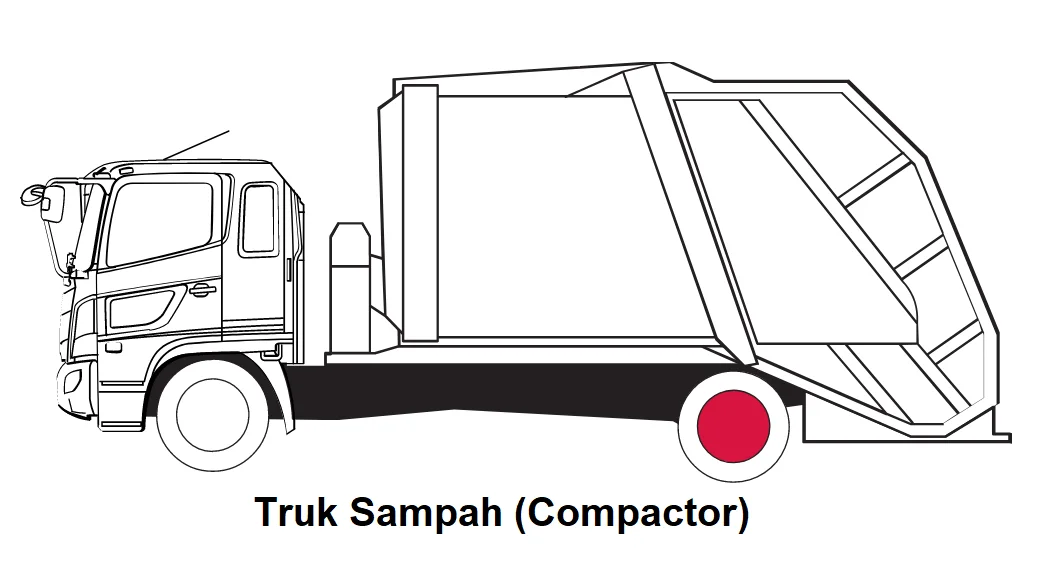

Truk Sampah (compactor)
| Kecepatan Maksimum (km/h) | 108 |
| Daya Tanjak (tan %) | 48 |
| Model | J08E-WE |
| Model Tipe | Mesin Diesel 4 Langkah Segaris; Variable Nozzle Turbocharger; Intercooler; Common Rail |
| Tenaga Maksimum JIS Gross (PS/rpm) | 265/2.500 |
| Daya Maksimum JIS Gross (Kgm/rpm) | 82/1.500 |
| Tenaga Maksimum ISO-NET (PS/rpm) | 260/2.500 |
| Daya Maksimum ISO-NET (Kgm/rpm) | 81/1.500 |
| Jumlah silinder | 6 |
| Diameter x Langkah Piston (mm) | 112 x 130 |
| Isi Silinder (cc) | 7,684 |
| Tipe | Pelat Kering Tunggal, dengan Coil Spring |
| Diameter Cakram (mm) | 380 |
| Tipe | MX07 |
| Ke-1 | 7,305 |
| Ke-2 | 4,736 |
| Ke-3 | 2,738 |
| Ke-4 | 1,651 |
| Ke-5 | 1,000 |
| Ke-6 | 0,787 |
| Ke-7 | 0,649 |
| Mundur | 7,839 |
| Tipe | Integral Power Steering |
| Minimal Radius Putar (m) | 7,6 |
| Depan | Reverse Elliot, I-Section Beam |
| Belakang | Full Floating Tipe Hypoid Gear |
| Perbandingan Gigi Akhir | 6,428 |
| Rem Utama | Full Air dengan Sirkuit Ganda |
| Rem Pelambat | Terletak pada Pipa Gas Buang |
| Rem Parkir | Spring Brake |
| Ukuran Ban | 10.00-20-16PR |
| Ukuran Rim | 20X7.50V-165 |
| Jumlah Ban | 6 + 1(Cadangan) |
| Accu (V-Ah) | 12V-65AH×2 |
| Kapasitas (L) | 200 |
| Jarak Sumbu Roda WB (mm) | 4.330 |
| Total Panjang OL (mm) | 7.600 |
| Total Lebar OW (mm) | 2.490 |
| Total Tinggi OH (mm) | 2.750 |
| Lebar Jejak Depan FR Tr (mm) | 2.050 |
| Lebar Jejak Belakang RR Tr (mm) | 1.835 |
| Julur Depan FOH (mm) | 1.280 |
| Julur Belakang ROH (mm) | 1.990 |
| Kabin Kesumbu Roda Belakang CA (mm) | 3.500 |
| Depan & Belakang | Rigid Axle dengan Pegas Daun Semi Elliptic |
| Berat Kosong (kg) | 5,520 |
| Berat Total Kendaraan (kg) | 16.000 |
